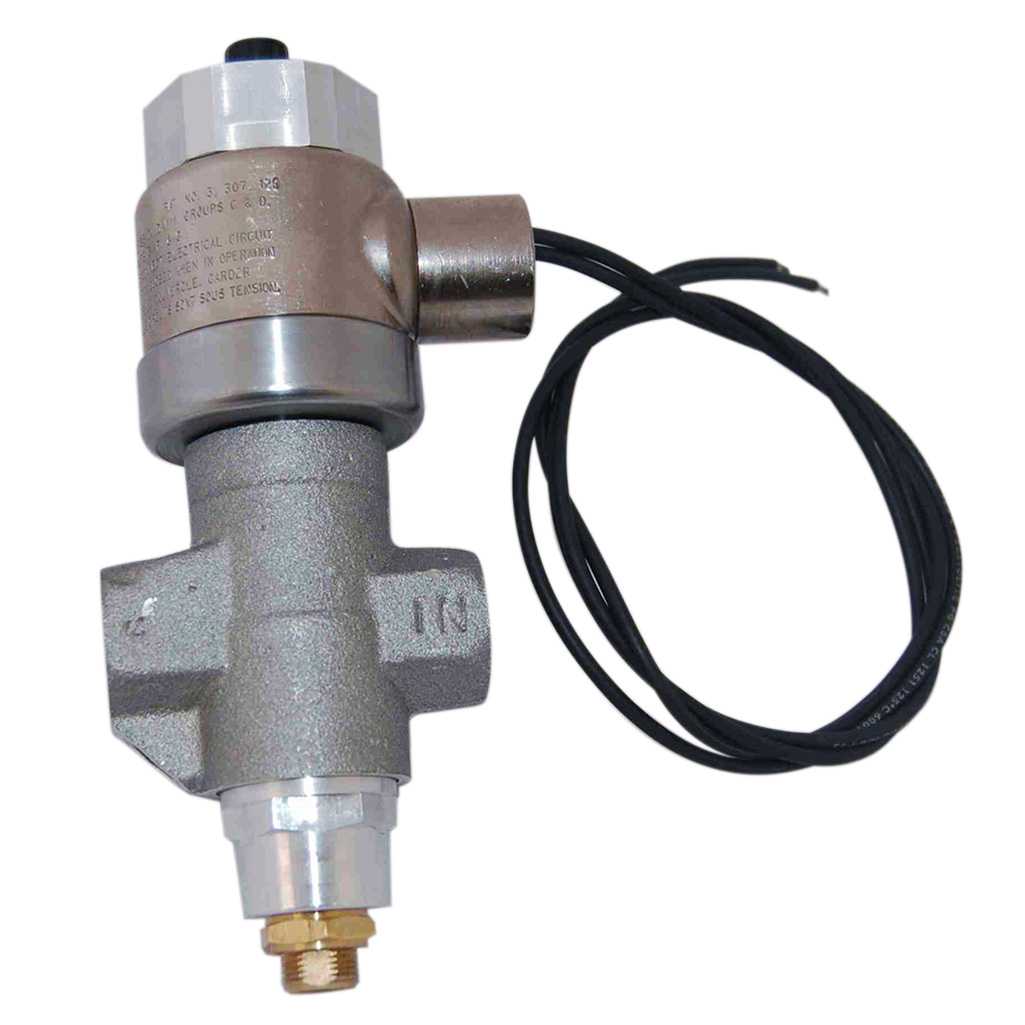

BE58 Series Explosion Proof Remote Automatic Shut-off Gas Valve

The BE58 Series is a unique gas valve design concept incorporating a solenoid operator with an electric-thermoelectric mechanical operator for various heating applications. This is the valve to use in place of a manual reset operator that is located in a remote areas. If power is lost to the coil, you can reset the valve with an optional manual override.

Need help finding the right product?

Note: If you have “AC” voltages, you can use our in-line bridge rectifier to convert to “DC” voltage. If you have 120 or 220 VAC, you will need to step down the voltage to 12 or 24 VAC along with using the in-line bridge rectifier.

Features
  • Can be controlled with PLC in remote locations
  • Compact Design – permits installation in restricted applications located in confined areas
  • Optional Manual Override – ability to manually reset gas valve if power is lost
  • Body Construction – Aluminum Die or Sand Cast
Specifications
  • Rated inlet pressure: 0.5 psi
  • Natural Gas flow capacity at 1 inch pressure drop: 145,000 Btu/hr.
  • Inlet/Outlet sizes: 1/4 inch, 3/8 inch NPT
  • Available voltages: 12 VDC, 24 VDC
  • Can be used in Class I, Division I, Groups C & D; Class II, Division I, Groups E, F, and G Hazardous Locations
  • Thermoelectric drop out range: 45-165 mV
  • Permissible ambient (surface) temperature: -40° to 149°F (-40° to 65°C)
Agency Listing
  • UL Recognized

Documentation
Download BE Series Explosion Proof Installation Instructions



Warninglabelgasvalves

Only licensed service professionals of the original equipment manufacturer or trained licensed contractors are approved to install or service BASO Gas Products. BASO Gas Products shall not be liable for damages resulting from misapplication or misuse of its products.
