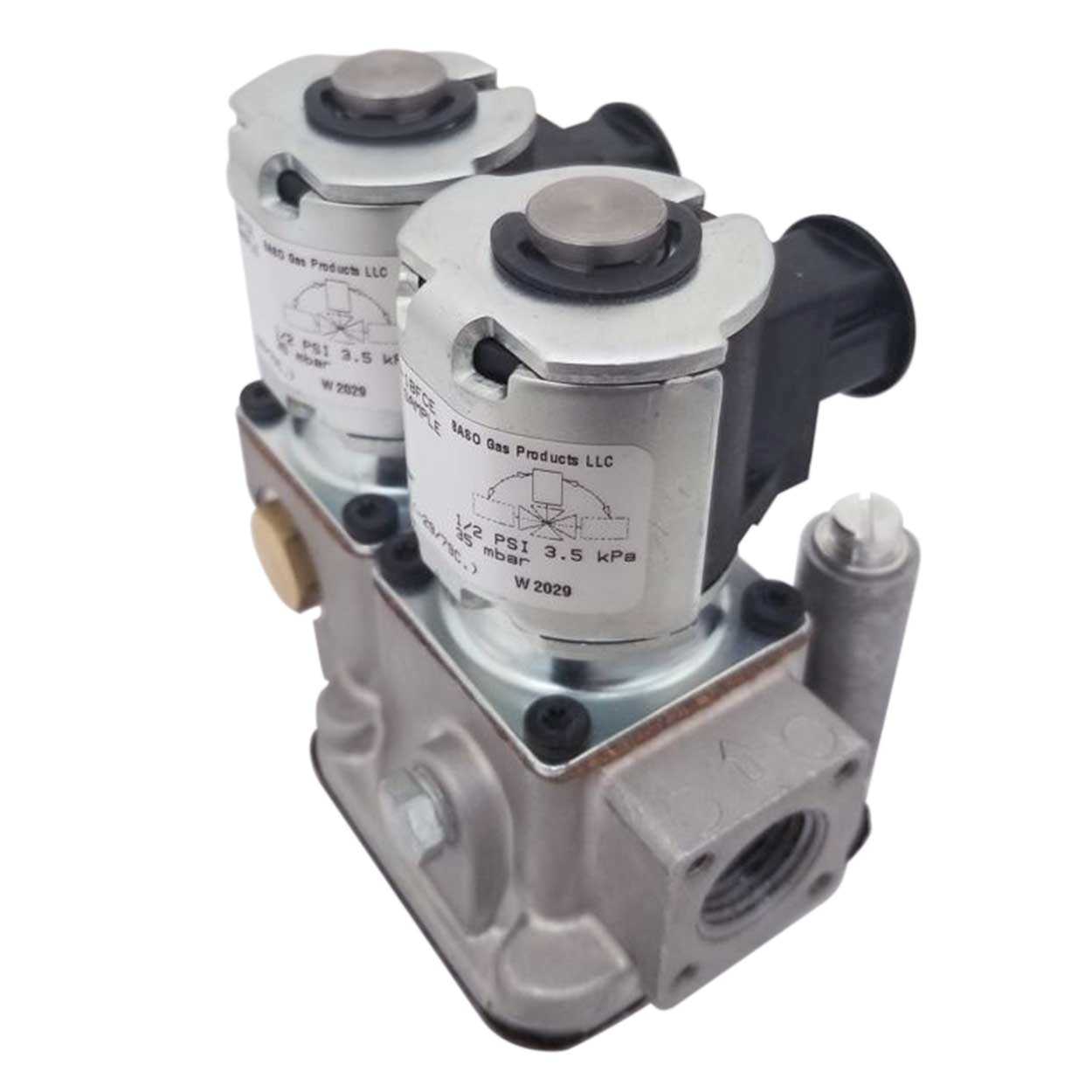

BGG278 Series Redundant Hi/Lo Solenoid Operated Gas Valve (Thread in Orifice Size)

The BGG278 Series Hi/Lo solenoid operated gas valve uses a pre-sized thread in orifice to provide the optimum amount of low fire gas to achieve the flame height or temperature required. Applications such as outdoor gas fire pits benefit using this gas valve to control the low flame, conserve gas, and/or for energy consumption savings.

Need help finding the right product?

Specifications
  • Rated inlet pressure: 0.5 psi
  • Natural gas flow capacity at 1 inch pressure drop:
    • Hi (fire) flow: 200,000 Btu/hr.
    • Lo (fire) flow: 20,000 to 65,000 Btu/hr.
  • Available voltages: 12 VDC, 25 VDC, 25 VAC, 120 VAC, 240 VAC
  • Inlet/Outlet sizes: 1/2 inch, 3/4 inch NPT
  • Pilot/Pressure tap size: 1/8 inch NPT
  • Regulation Adjustment: top, none, bottom
  • Permissible ambient (surface) temperature: -29° to 79°C (20° to 175°F)
Agency Listing
  • CSA

Documentation
Download BGG278 Series Installation Instructions



Warninglabelgasvalves

Only licensed service professionals of the original equipment manufacturer or trained licensed contractors are approved to install or service BASO Gas Products. BASO Gas Products shall not be liable for damages resulting from misapplication or misuse of its products.
