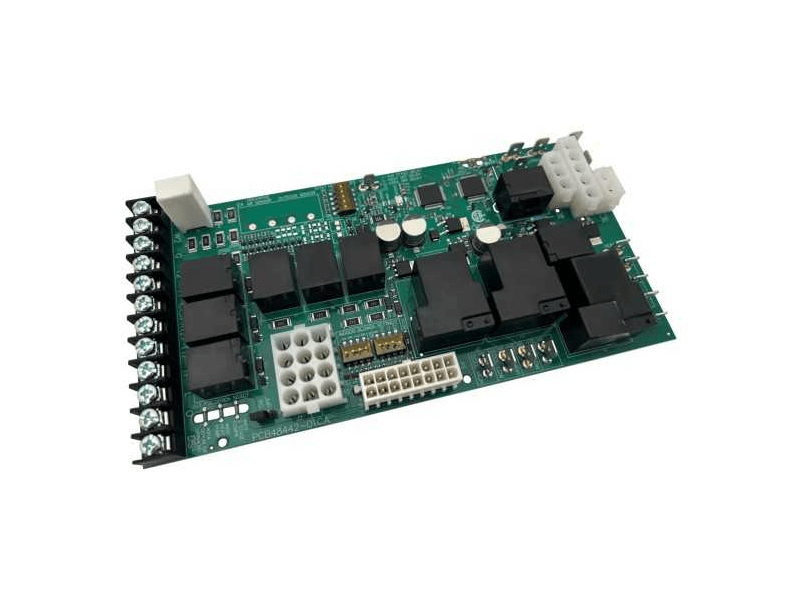

The CF442L is a 24 VAC direct replacement Lennox furnace board with a dual microprocessor-based design intended for 100% gas shutoff in case of ignition/flame relay control failure. This item replaces 29 different Two-Stage and Variable Speed Lennox models. The board connectors allow the user to hookup directly to the furnace without the need for a separate cable harness with the board.
Replaces Lennox Two-Stage Models
• 100869-01 • 15J31358 • 63W2601
• 100869-02 • 23W25 • 86W81
• 100869-03 • 23W2501 • S9220E1018
• 12X09 Kit • 614148-02 • S9220E1018/U
• 1505J17603 • 63W26
Replaces Lennox Variable Speed Models
• 0741J58574 • 12X08 Kit • 852678-5
• 085267807265 • 19W60 • 894W23
• 100870-01 • 63W27 • S9230F
• 100870-02 • 63W2701 • S9230F1006
• 100870-03 • 85267 • S9230F1014
Specifications
- Controls two-stage gas valve, two-speed inducer motor, hot surface ignitor, three-speed blower motor or variable speed blower motor, humidifier, and electronic air cleaner
- Reverse polarity protection and detection
- Secondary brown-out voltage protection
- Tri-color LED diagnostic for troubleshooting
- Compatible with 24 VAC standard and smart thermostats
- Supports speed tap or variable speed blowers
Agency Listing
- CSA
