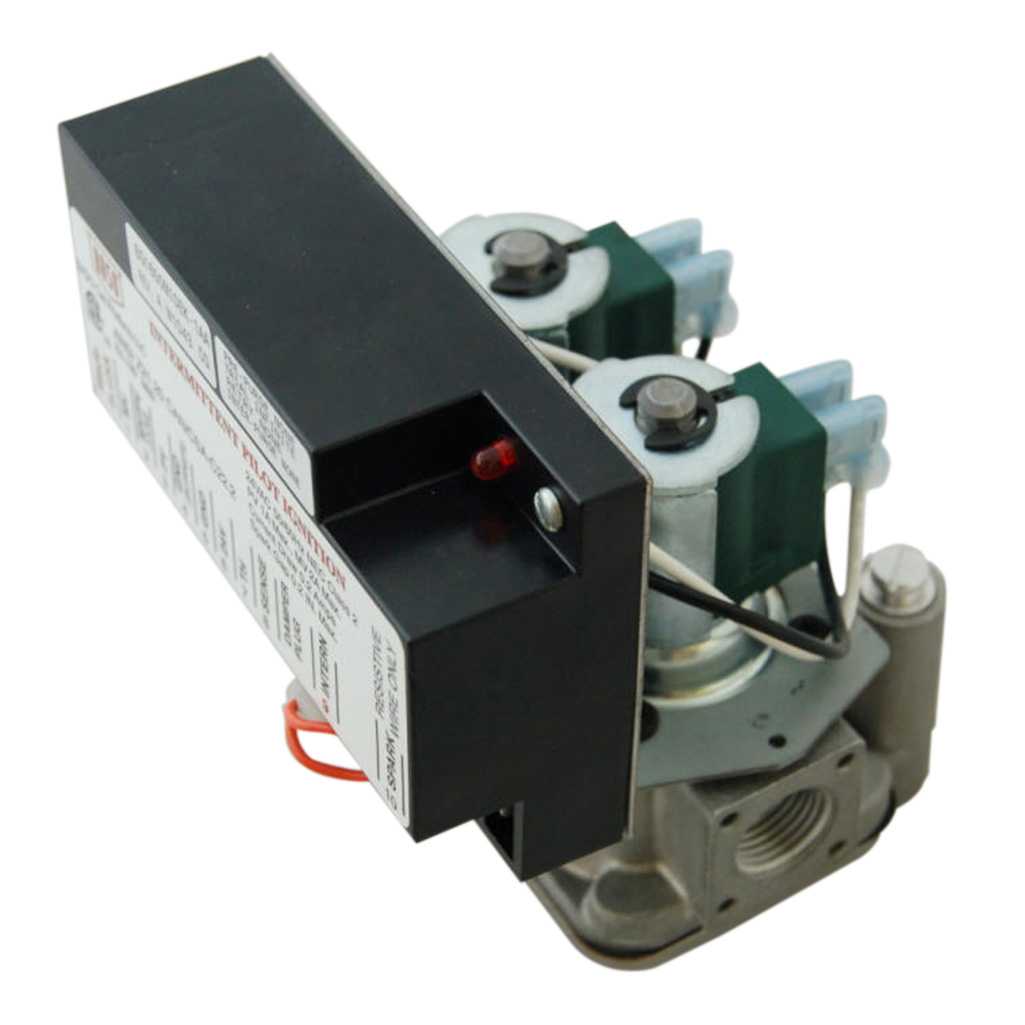

BGQH15HAA-1 Retrofit Gas Control System

The BGQ15 gas control system uses a solid-state electronic ignition/flame relay control to light a pilot burner by intermittent pilot spark in Natural gas applications only. Pilot gas ignites and burns during each running cycle. This system is typically used when converting a standing pilot burner application to a more fuel-efficient intermittent spark pilot system. It permits the main gas valve to open only when the pilot burner is proven to be lit. With fast response to flame loss, the BGQ15 is ideal for power vent or gravity vent heating equipment.

Need help finding the right product?

Parts Included:
  • (1) BGD278JBE-20BCGD gas valve
  • (1) C64AHA-1 spark intermittent pilot ignition control
  • (1) Rajah adapter
  • (4) 1/4 inch female quick connects
  • (1) Sensing probe cable
  • (1) 1/8 inch NPT to 1/4 cc elbow fitting
  • (1) Reducer bushing (3/4 inch to 1/2 inch NPT)
  • Retrofit package installation diagram and a pressure sensitive lighting caution sticker
Specifications
  • Rated inlet pressure: 0.5 psi
  • Natural gas flow capacity: 190,000 BTU/hr. at 1 in. pressure drop
  • Available voltages: 25 VAC, 50/60 Hz
  • Inlet/Outlet sizes: 1/2 inch NPT inlet x 3/4 inch NPT outlet
  • Pilot/Pressure Tap size: 1/8 inch NPT
  • Permissible ambient (surface) temperature: -20° to 175°F (-29° to 79°C)
Agency Listing
  • None
Electrical Connections
  • 1/4 in. male quick-connect terminals



Warninglabelgasvalves

Only licensed service professionals of the original equipment manufacturer or trained licensed contractors are approved to install or service BASO Gas Products. BASO Gas Products shall not be liable for damages resulting from misapplication or misuse of its products.
