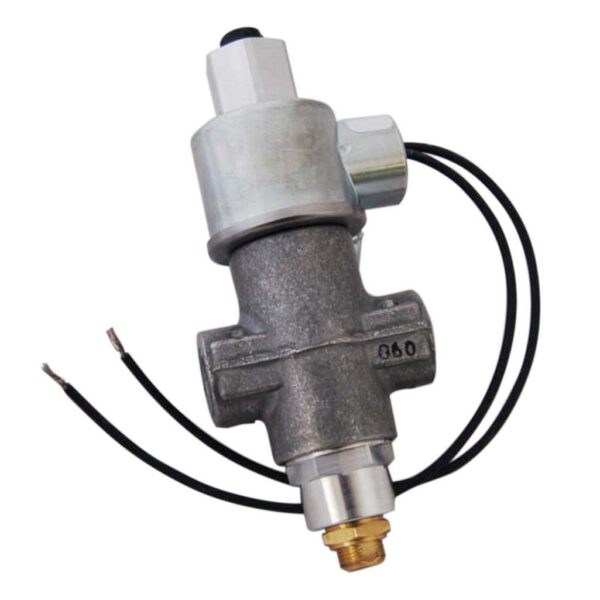

BGX583N Series Remote Electrical Shut-off Safety Gas Valve

The BGX583N Series is a non-explosion proof gas valve with a unique design concept incorporating a solenoid operator with an electric-thermoelectric mechanical operator for various heating applications. This is the valve to use in place of a manual reset operator that is located in a remote areas. If power is lost to the coil, you can reset the valve with an optional manual.

Need help finding the right product?

Note: If you have “AC” voltages, you can use our in-line bridge rectifier to convert to “DC” voltage. If you have 120 or 220 VAC, you will need to step down the voltage to 12 or 24 VAC along with using the in-line bridge rectifier.

Features
  • Natural gas flow capacities of 75,000 to 145,000 Btu/hr. at 1 inch pressure drop
  • Optional Manual Override – reset gas valve if power is lost
  • Body construction – Aluminum die or Sand cast
Specifications
  • Rated inlet pressure: 0.5 psi
  • Available voltages: 12 VDC, 24 VDC
  • Inlet/Outlet sizes: 1/4 inch, 3/8 inch
  • Operable gas types: Natural Gas, Liquefied Petroleum (LP), LP gas-air mixtures
  • Thermoelectric drop out range: 100 – 300 mA
  • Permissible ambient (surface) temperature: -40° to 149°F (-40° to 65°C)
Agency Listing
  • UL Recognized

Documentation
Download Installation Instructions



Warninglabelgasvalves

Only licensed service professionals of the original equipment manufacturer or trained licensed contractors are approved to install or service BASO Gas Products. BASO Gas Products shall not be liable for damages resulting from misapplication or misuse of its products.
